The raft trailer that we build is designed with the guide in mind and uses the sturdiest materials available made to last.
With a little maintenance, it will be the last trailer you ever buy.
*Only available for in-store pick up

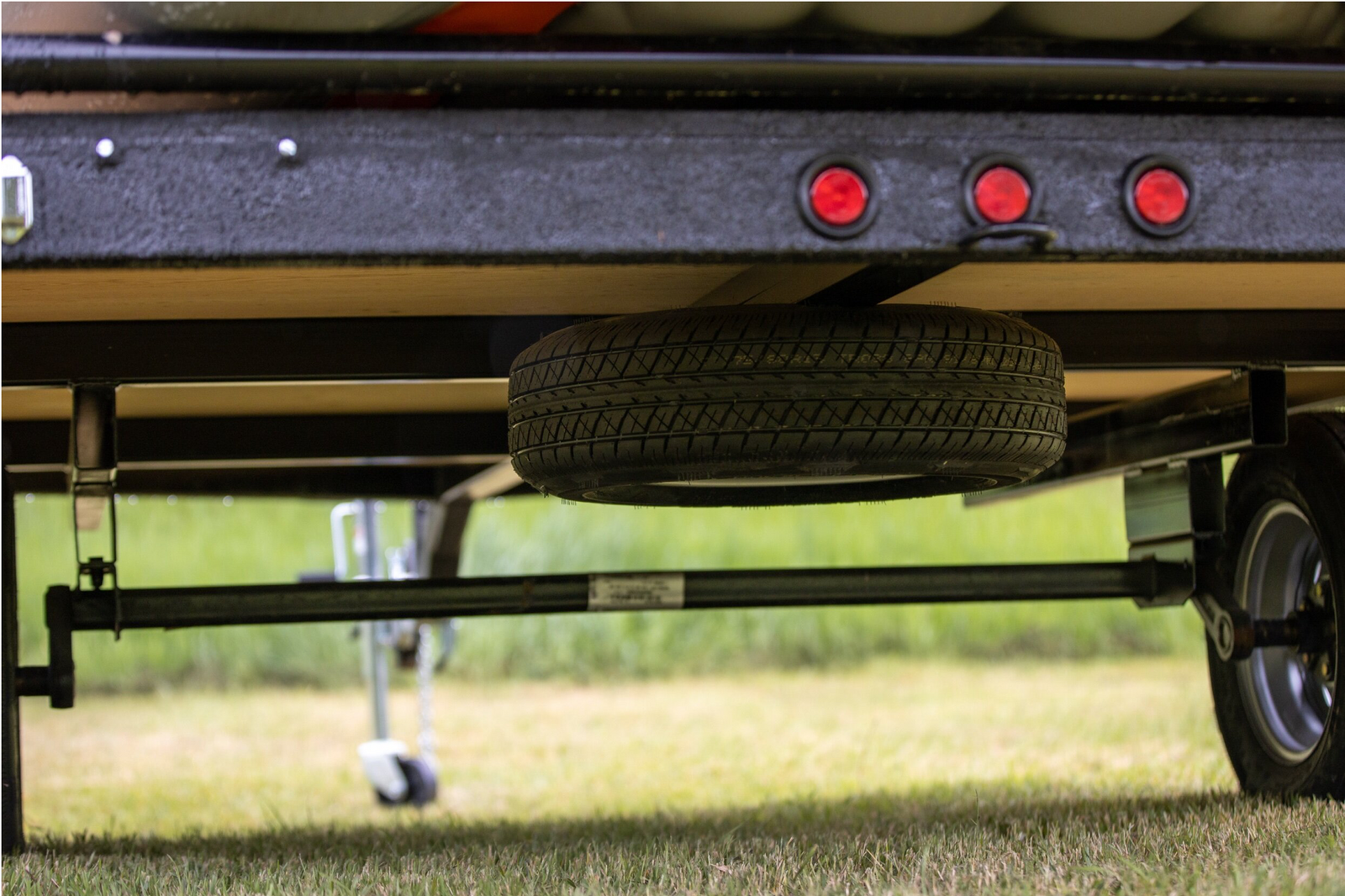

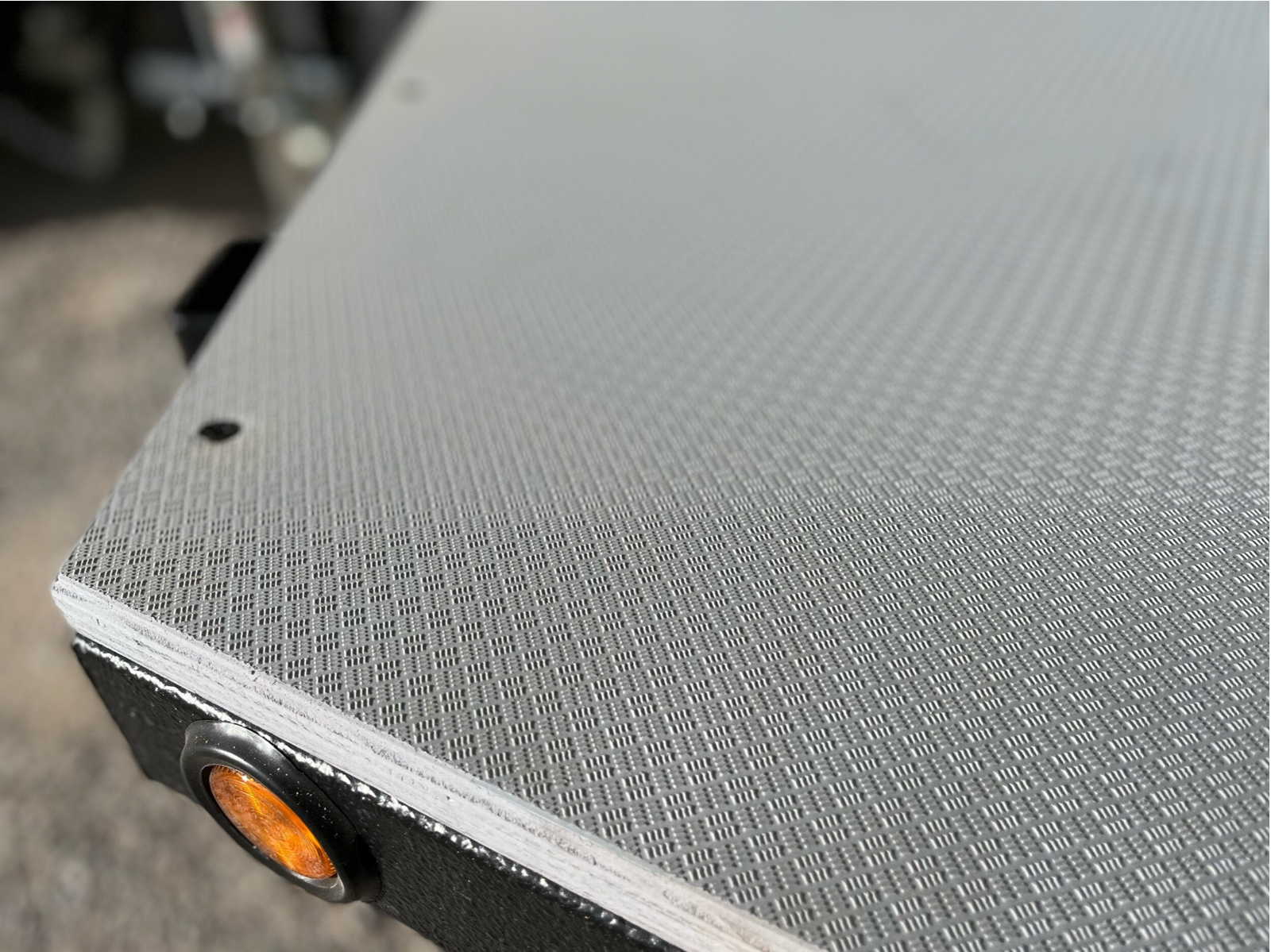

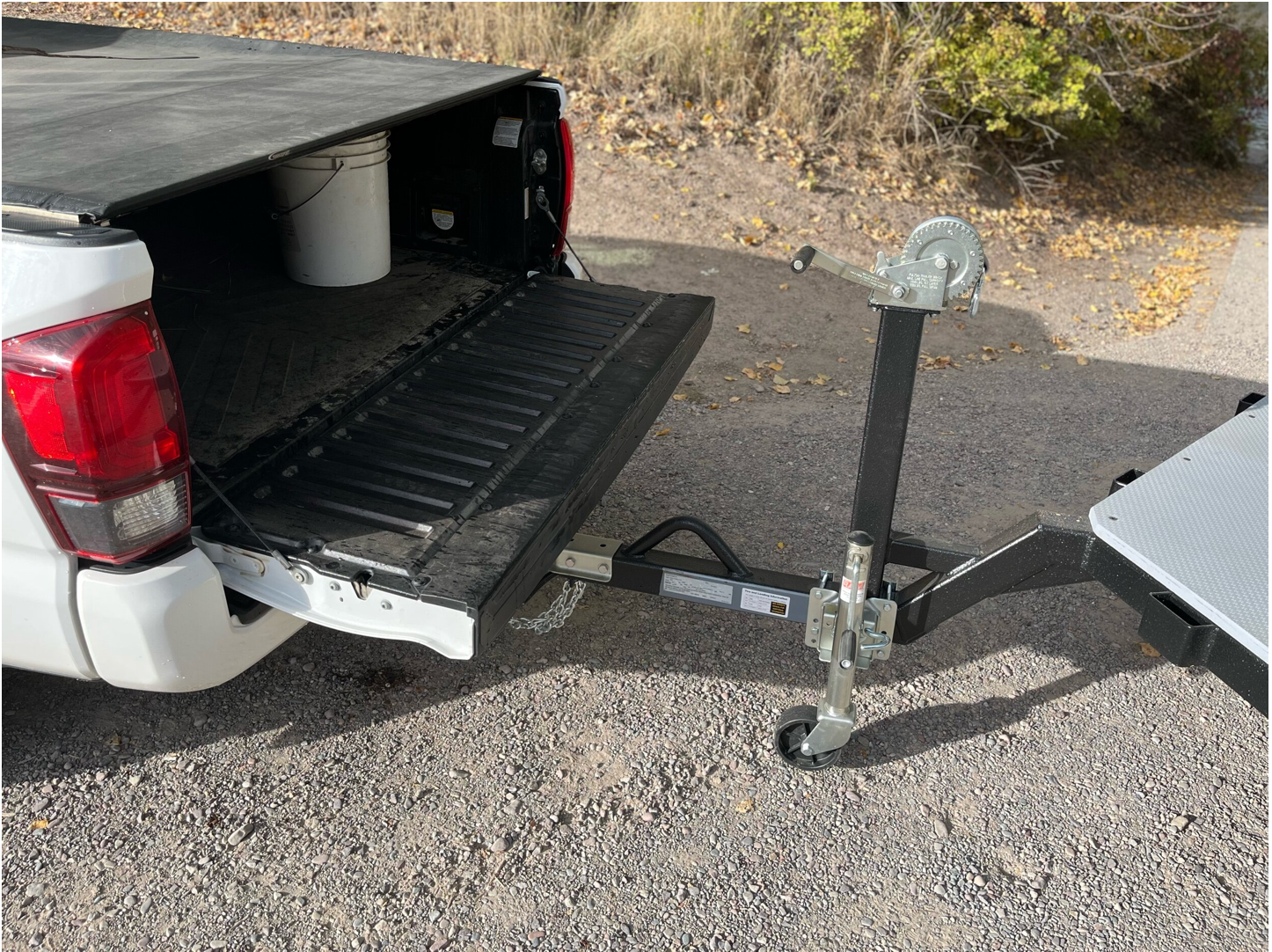

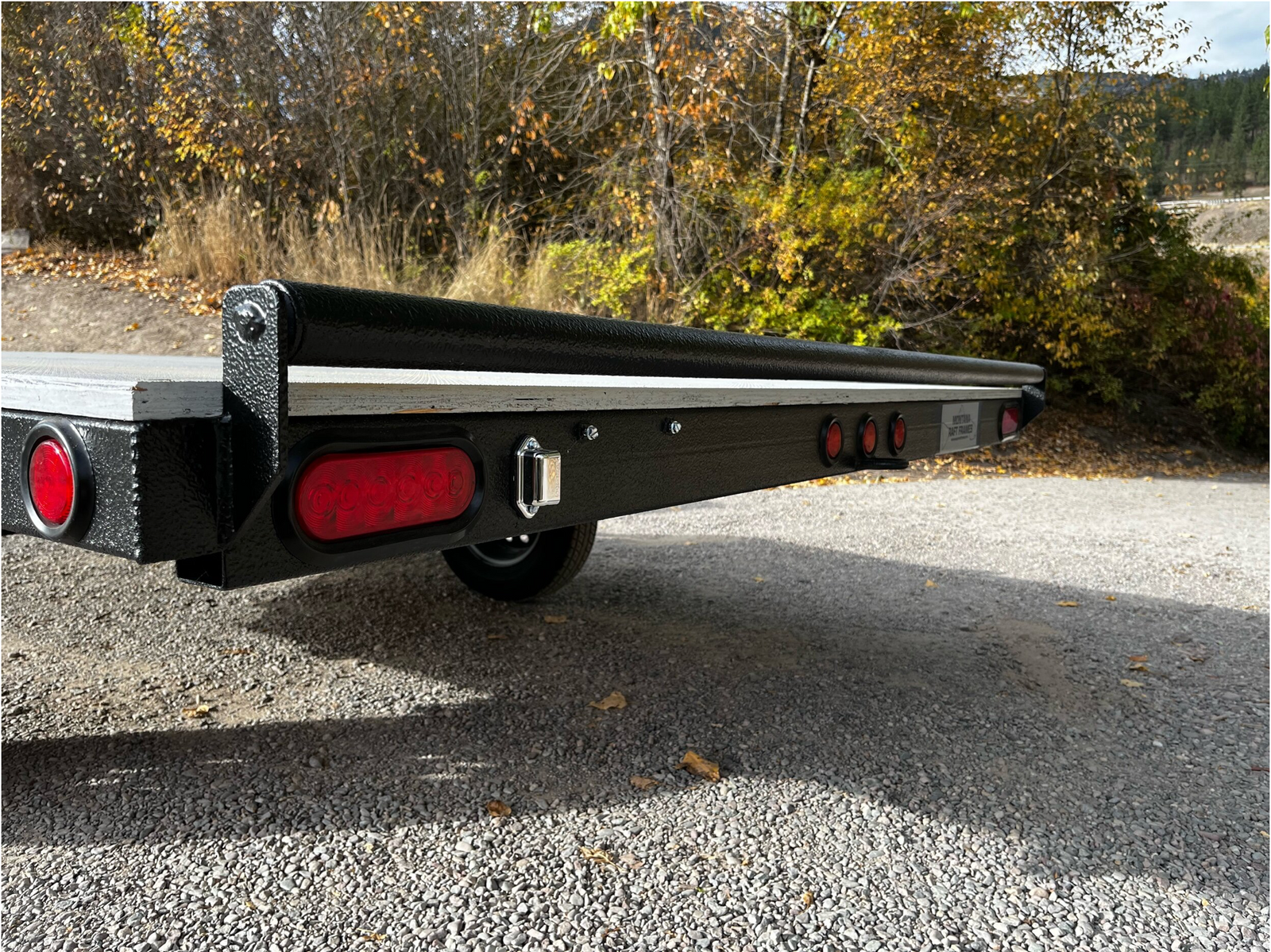

Our trailers come with 2200lb torsion axles and 13" radial trailer tires with a spare mounted on a carrier under the deck. We put a hand crank winch on the front and a full width steel roller on the back for the easiest loading and unloading of your boat. We use sealed led lights and heat shrink connectors to eliminate wiring headaches. We use a 3/4 inch plywood built with waterproof glue for decking. It has a light grey textured UV rated plastic overlay surface on top so your boat slides on and off with ease with no fear of splinters. The textured surface gives you a little traction as well when you are walking around on the trailer. All trailers come with stake pockets on the front and sides so you can haul more than just your boat if need be. The underside of the trailer is painted with a grey epoxy primer and the exterior frame work is coated with a rubberized liner.

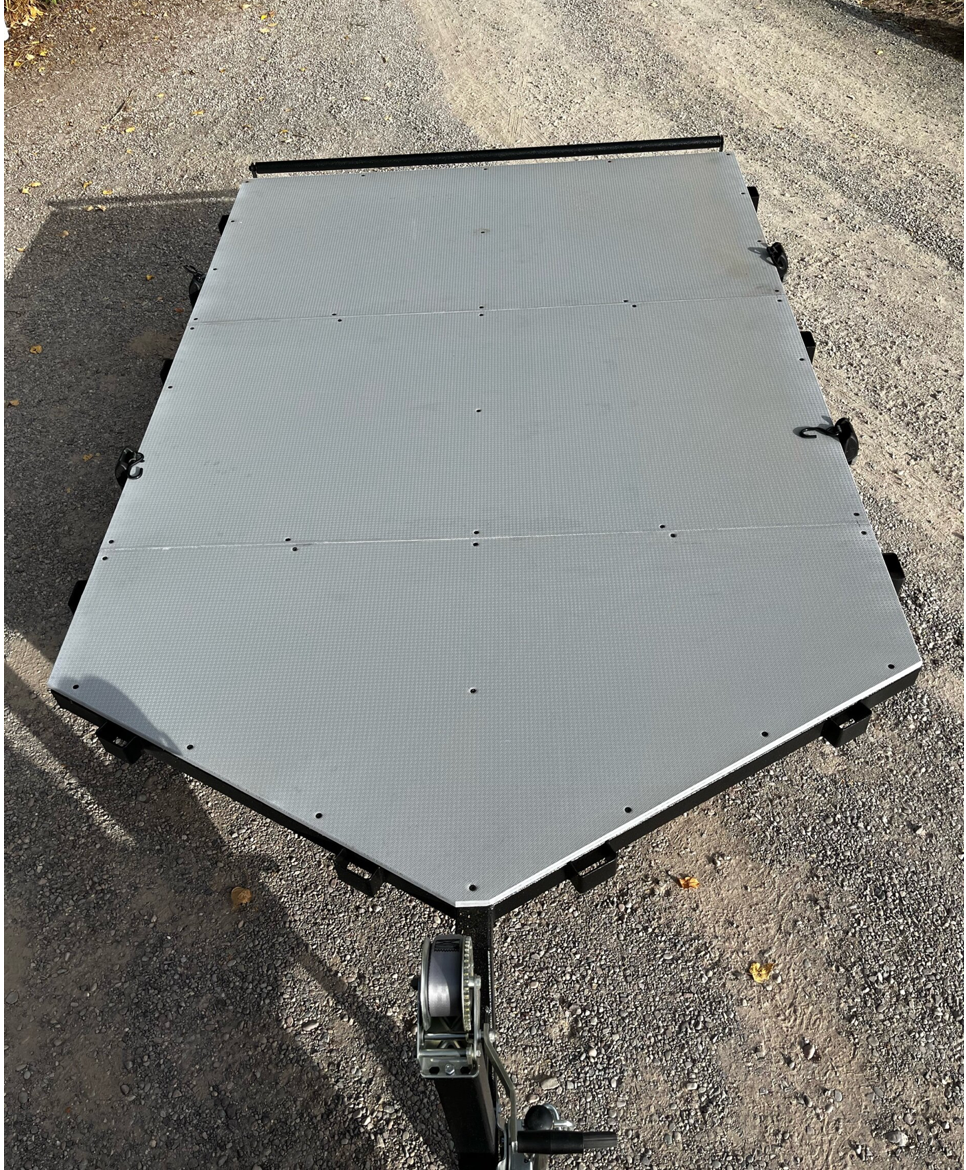

Our Standard Trailer has a 12’ long deck that is 88” wide. The trailer is 15’10” long overall and 92” wide overall taking into account the stake pockets on the sides. We recommend this size trailer for boats up to 14’6” long. For boats 15’ long and over, we recommend our 14’ deck trailer which is 98” wide overall. The cost on the larger trailer is $4200 and it comes with the larger 14” tires included in that price. This price does not include boat buckles.
We can also upgrade to larger axles and tires and wheels if you prefer. We can upgrade to a 3500 lb axle for an additional $200. We can go to a 14” tire and wheel package on our 12’ deck trailer for an additional $150.
Total trailer weight is 650lbs. Weight carrying capacity is 2200 lbs less the trailer weight.
We also do some custom welding and variations so if you have ideas of your own or something you would like added, just give us a call.

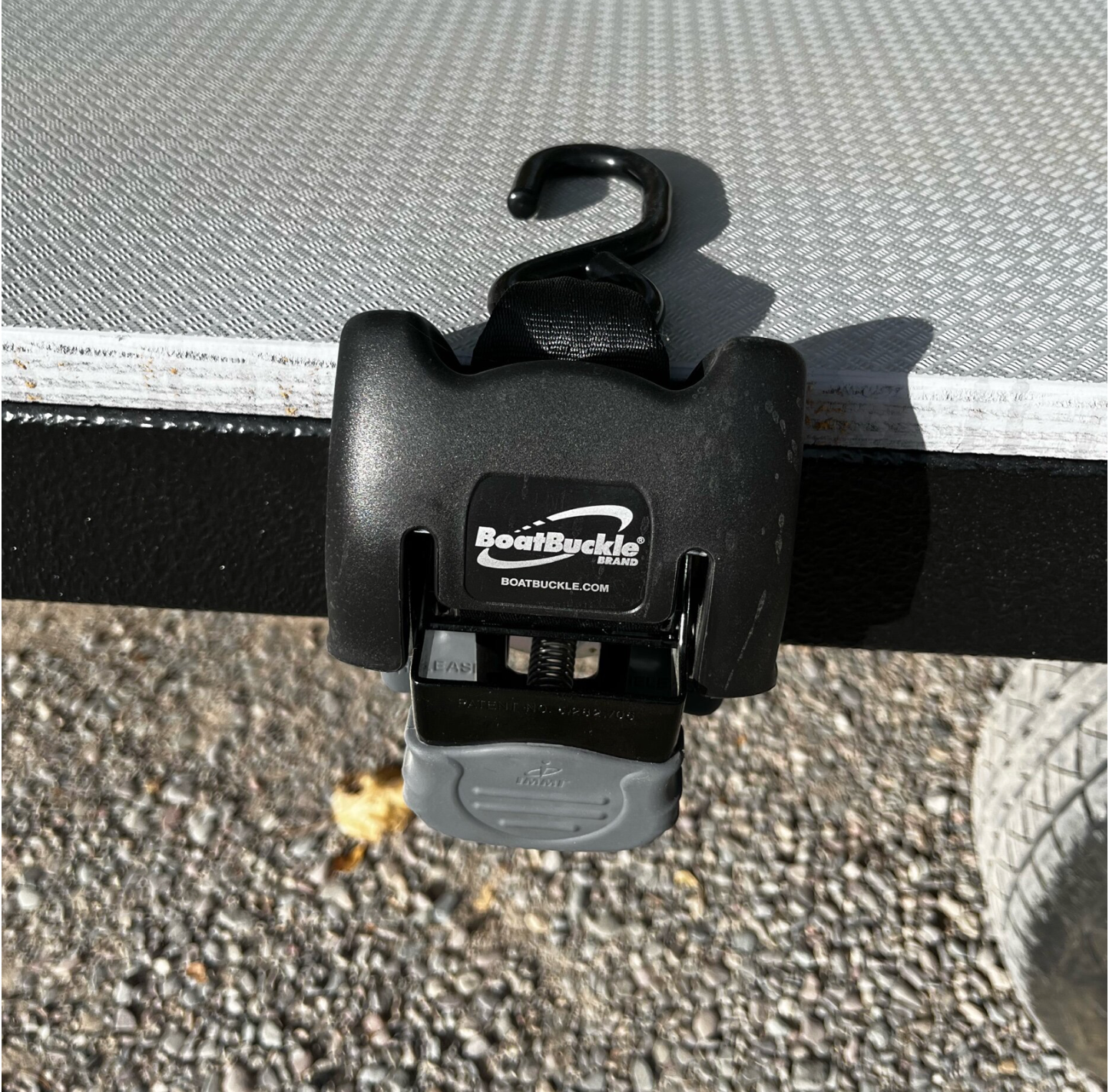

This trailer comes with Boat Buckles as well. They are by far the BEST way to strap your boat down to your trailer. They are $55 each and are included in the above price.
We can also add a tongue jack with a wheel for an additional $75.
*Only available for in-store pick up. Trailer orders may take several days to fulfill depending on current inventory.
